Fastening Systems for Furniture

Our furniture fastener origins started in the automotive seating and soft trim sectors and were further developed when manufacturers wanted new design processes to make furniture.

APLIX have developed products for:

• Mold-In Hooks for injection foam seat cushions and backs
• Loop Join Seam Lock for upholstery
• Injection Mold Hook for plastic components

Mold-In Hooks
System Benefits:

• Enhanced seat confort
• Design flexability
• Improved ergonomics
• Productivity gain

		aplix®985 Mold-in Hook with Foam Applications 1. Shieldless mold-in narrow 12mm strip fastener for straight parts. 2. Trench adapters for converting existing molding.
		aplix®255 Mold-in Hook Foam Applications Mold-in mushroom hook fastener with foam anchor for die cut shapes and straight parts. Strong gripping power when used with #624 loop
		aplix®225 Mold-in Hook Foam Applications Mold-in mushroom hook fastener with foam anchor for die cut shapes and straight parts. Strong gripping power when used with #624 loop

Loop Join Seam

System Benefits:

• Provides that "cut edge Cadillac look" in the cushion
• Very flexible and no wrinkle transfers to fabric
• Used in combination with #985, #255, #225 hook

Our Join Seam Loop Products
		aplix® 624 Join Seam Loop Lock Polyester knit loop. It can be wrapped around a join seam or sewn into a specific area to mate with #225, #255 and #985 hook molded in the seat pad. Available in standard and aggressive strengths.

Top

Injection Mold Hook

An innovative method of integrally molding a field of hooks within an injection molded component. The field of hooks can be designed in any shape and size in virtually any location on a component.

System Benefits:

• Hooks molded during “one shot” injection cycle

• Hooks are 100% of the component
• Eliminates the de-lamination of hook from the product surface
• Savings in labour costs
• Increased holding strength

Types of materials that can use this process are:

• Polypropylene
• Polyenthylene
• Polyaccetal
• Nylon
• Thermplastic elastomers

Our injection Mold Hook Products   aplix® Injection Mold Hook with Push Pins Attachments Mold hooks have very strong gripping power.  Size 1” x 2” (25mm x 50mm). Push pins: arrowhead, christmas tree and extended channel.   aplix® Injection Mold Hook discs The disc has a center hole for quick alignment and requires a screw, nail or rivet to hold it in place. Size: 1" and 1.5" diameter (25mm and 38mm).

Additional Fastening Systems for Furniture

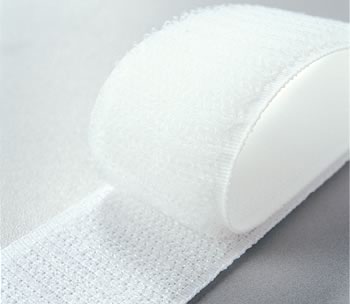

Standard Applications   aplix®800 Hook Nylon standard hook To be used with #800 and #804 loop. Certifications: A-A-55126B.   aplix®800 Loop Nylon texturized loop. High cycle life and shear strength when used with #800 hook.   aplix®400 Hook Economical standard nylon hook with good cycle life.     aplix®400 Loop Economical standard nylon loop with good cycle life.     aplix®810 Hook and Loop Marine and Outdoor Applications Polyester hook and loop. Resistant to humidity, UV and chemicals. High shear, tension and peel strength and no loss of properties when wet. Also available with pressure sensitive adhesive.   aplix®922 Arrowhead Hook Nylon extruded Arrowhead hook. Aggressive High Shear strength when used with #800, #804, and #400 loop. Available in 1" (25mm) only, standard or adhesive backing. Limited cycle life. Top

Deck and Back

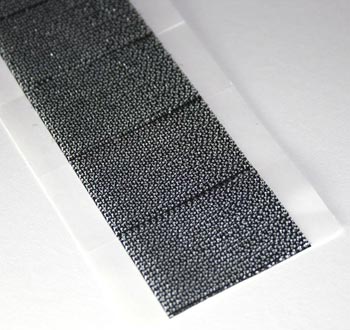

		aplix®200 Mushroom Hook Polypropylene mushroom hook with Nylon base, moderate thickness, 100 cycle life. Powerful gripping force.
		aplix®200 Loop Nylon loop, low profile. Up to 50" (1270mm) wide.

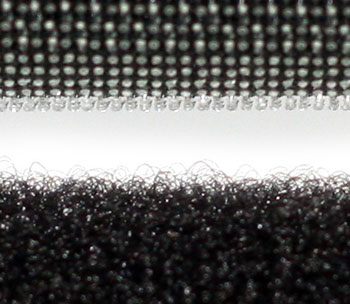

		aplix®200 Hook and Loop Polypropylene mushroom hook with Nylon base, moderate thinkness, 100 cycle life. Nylon loop, low profile. Powerful gripping force.

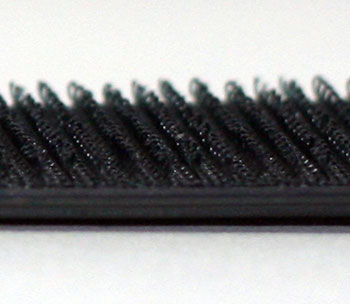

		aplix® A stick Hook and Loop Hook and Loop laminated to a rigid plastic. To be attached to the substrate by the means of a mechanical fastener such as screw, staple, rivet or nail. Available in 1" and 1.75" (25mm and 45mm) widths. 1000 ft per roll.

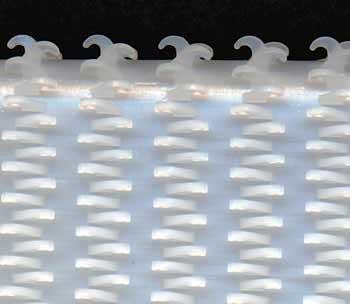

		aplix®730 Plastic Hook Polypropylene extruded hook. Strong gripping power. This hook can be used with the following loops: #800, #804 and #400. Up to 4" (107mm) wide.

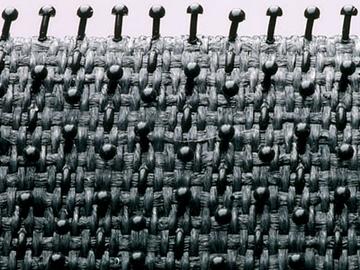

		aplix®220 Mushroom Hook Polyproylene mushroom hook with a polyester base. High shear and tension strength Up to 57” (500mm) wide.

Adhesives

High Shear PSA, -P- Pressure sensitive	Rubber based adhesive. Adheres to various substrates such rigid polypropylene, cardboard, corrugate, glass, mylar, paper, galvanized metal, stainless steel. Temperature range -20.2F (-29C) to 179.6F (82C).
High Temp PSA -L- Pressure sensitive	Acrylic adhesive. Adheres to Sintra, vinyl, PVC, ABS, Plexiglas, Polycarbonate. Temperature range: -29.2F (-34C) to 284F (140C).
High Tack PSA -R- Pressure sensitive	Thermoplastic Rubber designed for immediate high tack. Adheres to: ABS, Aluminum, Anodized Aluminum, cardboard, foam, corrugate, galvanized metals, glass, mylar, plexiglass, polycarbonate, polyethylene, polyurethane foam, polished woods. Temperature range: -9.39F (-23C) to 129.2F (54C).
Hi Tack Adhesive -Z- Pressure sensitive	Thermoplastic Rubber design for immediate high tack. Adheres to: polyurethane film and foam, polyester foam, cross linked polyethylene foam. Temperature range: -9.39F (-23C) to 129.2F (54C).

Top

Straps

We can produce a variety of straps for you using our standard sizes or we can customize a strap to meet your needs if you have special requirements. Material: Standard backing, #800 Plush, #810 Plush Poly, #802 Twin Loop, #812 Twin loop.

Strap Types
Back Strap

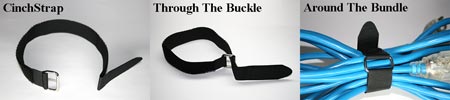

Cinch Strap
Quick Release
Face Strap
Graduated Strap
